Sigma MJ380F

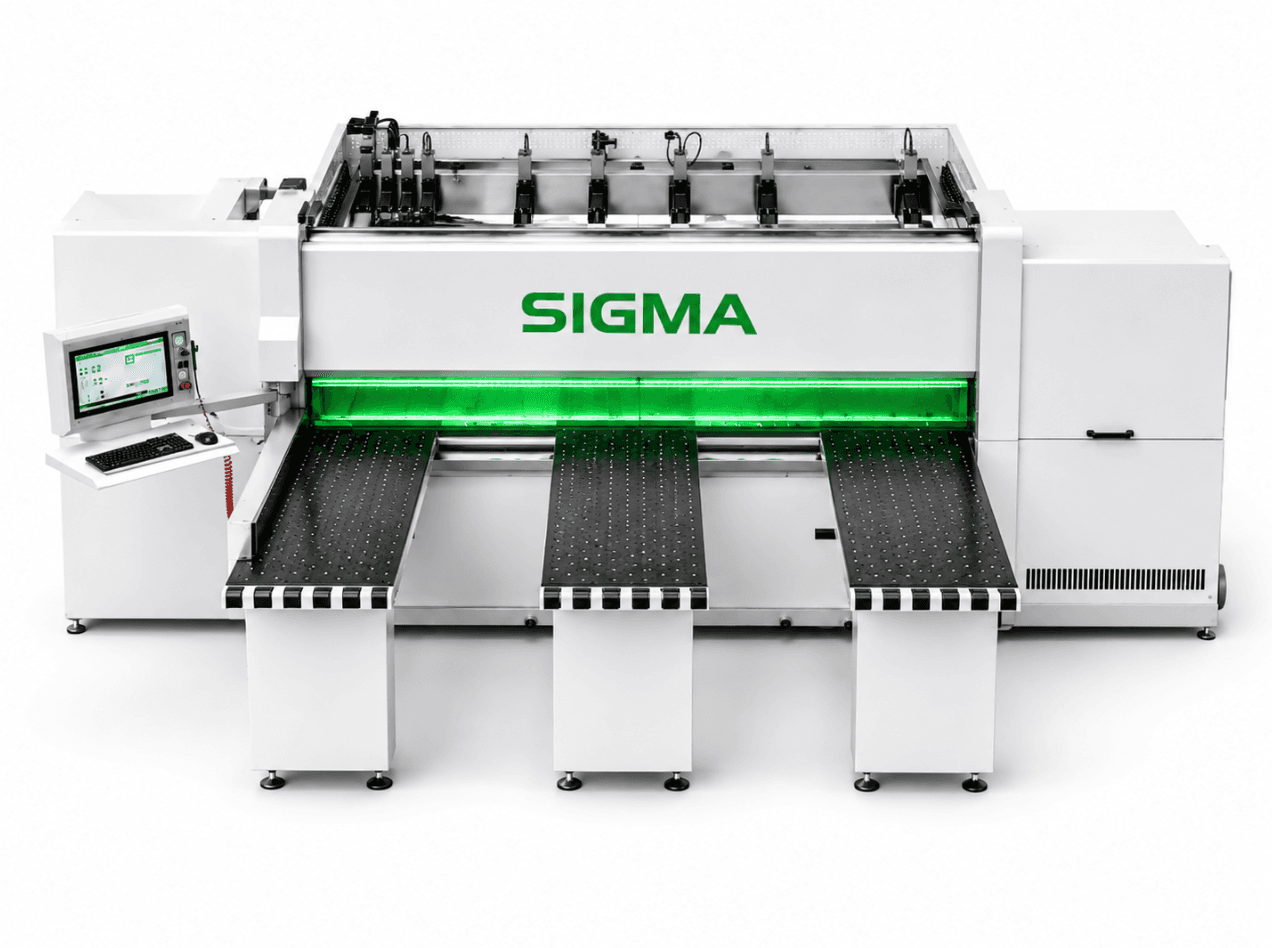

Sigma MJ380F (Beam Saw Machine)

A heavy-duty beam saw for precision panel cutting, with a 3800 mm cutting length and 10 automatic clamps. Equipped with KDT cutting optimization software and a QR code label printer, it delivers fast, accurate panel breakdown for high-volume production.

Request a Quote

Technical Specifications

Dimensions: 5880 × 6932 × 2000 mm
Weight (approx.): 5600 kg
Total Power: 23.5 kW
Cutting Length: 3800 mm
Max Cutting Height: 100 mm
Number of Clamps: 10 clamps
Main Saw Diameter: 350 – 400 mm
Main Saw Power: 15 kW
Main Saw Speed: 4200 m/min
Groove Saw Diameter: 200 mm
Groove Saw Speed: 6300 m/min
Saw Carriage Cutting Speed: 0 – 100 m/min
Automatic Feed Speed: 0 – 120 m/min
Air Pressure: 6 – 8 bar

Advanced Features

✓KDT cutting optimization software

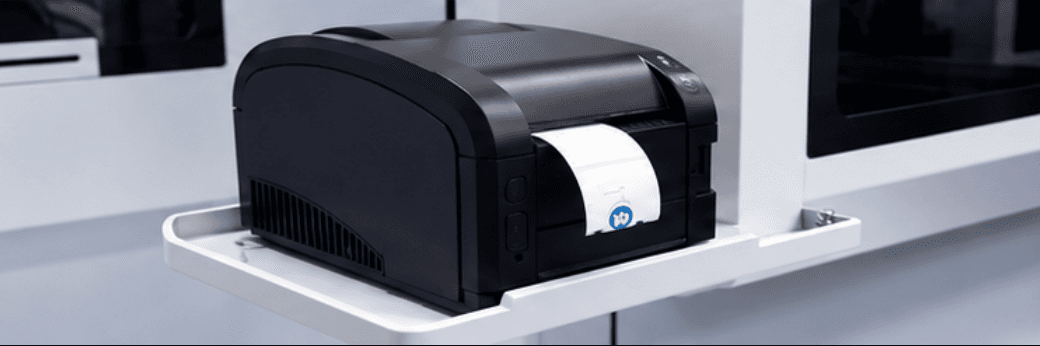

✓QR code label printer
