Sigma H2-16 ATC

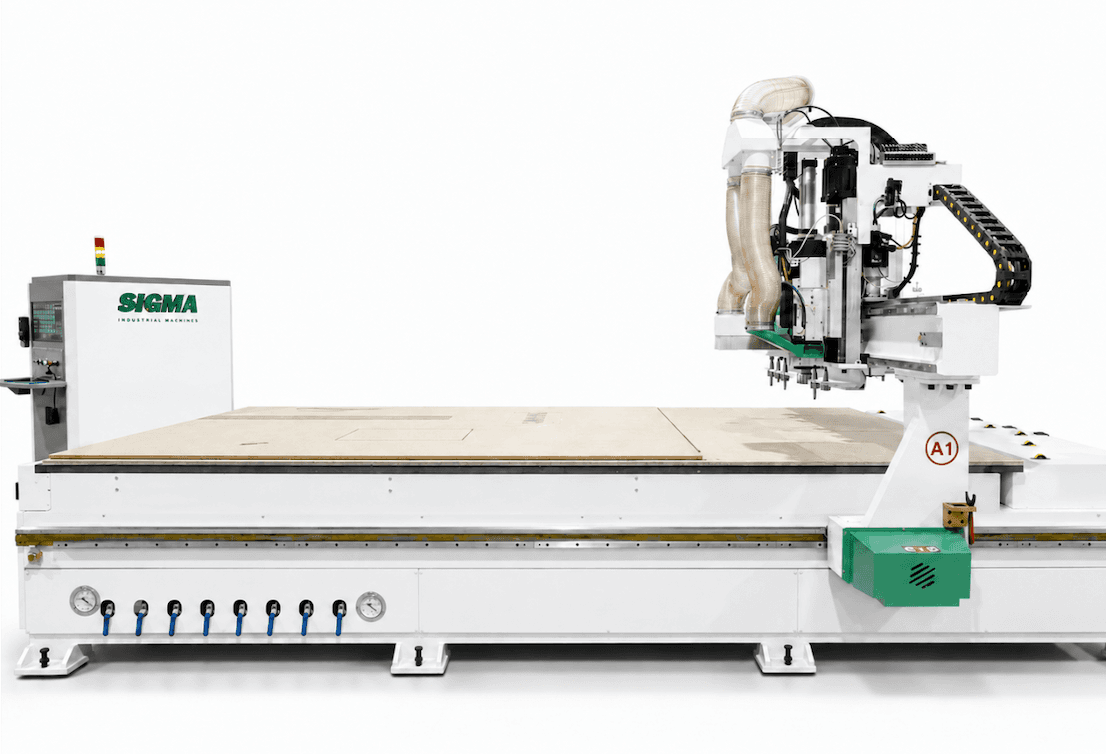

Sigma CNC Center Machine H2-16 ATC
A wood CNC machining center with automatic tool change (16 tools, ISO 30 holder), a 9kW air-cooled C-axis spindle, a 9-vertical + 4-horizontal boring head, and dual 7.5kW vacuum pumps. Built for full-panel cutting, drilling, and boring in one setup.
Request a QuoteTechnical Specifications
- Type
- Wood CNC machine with boring head
- Frame
- Heavy welded bed
- Dimensions
- 5000 × 2500 × 2400 mm
- Max Work Size
- 4000 × 2100 × 350 mm
- Transmission
- Rack gear / square rail (Italy PRK 30), TBI ball screw 25
- Spindle
- 9 kW air-cooled CC spindle (C-axis support)
- Boring Head
- CC (9 vertical + 4 horizontal)
- Spindle RPM
- 0 – 24,000
- Control System
- Syntec + wireless handle (C-axis support)
- Tool Change
- 16 tools, ISO 30 holder
- Vacuum
- Table vacuum + 2 × 7.5 kW pumps
- Electricity
- 380V, 50Hz, 3ph
