Sigma H3-MS-T

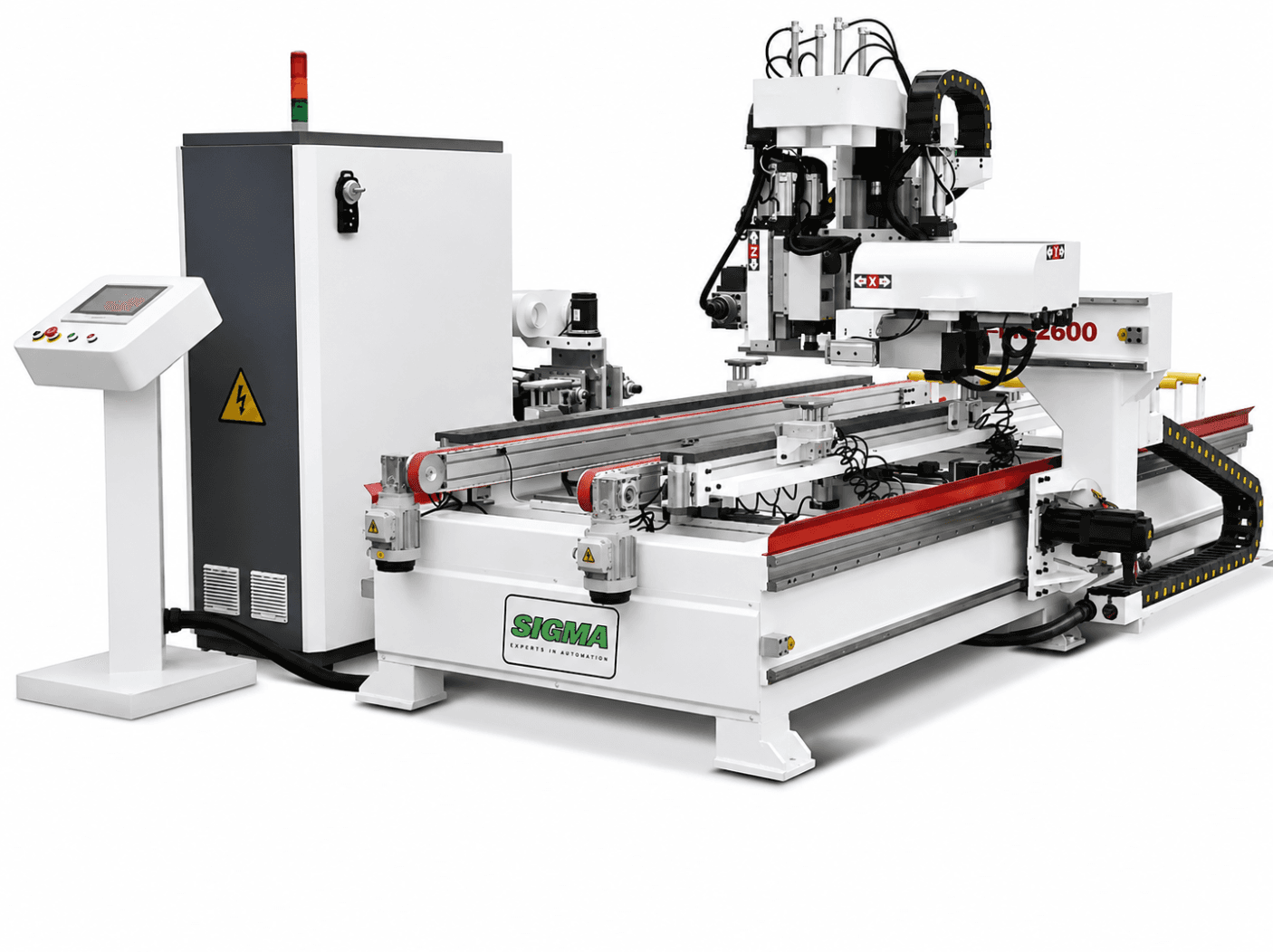

Sigma CNC Doors Machine H3-MS-T
A key-hole drilling CNC machine on a heavy welded bed, built for cabinet-door production with a Syntech CAM control system and a Japan Shimpo reducer for precise, repeatable drilling.
Request a QuoteTechnical Specifications
- Type
- Key-hole drilling machine
- Frame
- Heavy welded bed
- Dimensions
- 4000 × 3200 × 2400 mm
- Max Work Size
- 1100 × 2600 mm
- Min Work Size
- 500 × 1800 mm
- Work Thickness
- 35 – 65 mm
- Spindle
- 6 kW × 6
- Control System
- Syntech CAM
- Work Speed
- 50 m/min
- Reducer
- Japan Shimpo reducer
- Pressure
- 6.5 – 7.5 bar
- Electricity
- 380V, 50Hz, 3ph
