Sigma HM-612

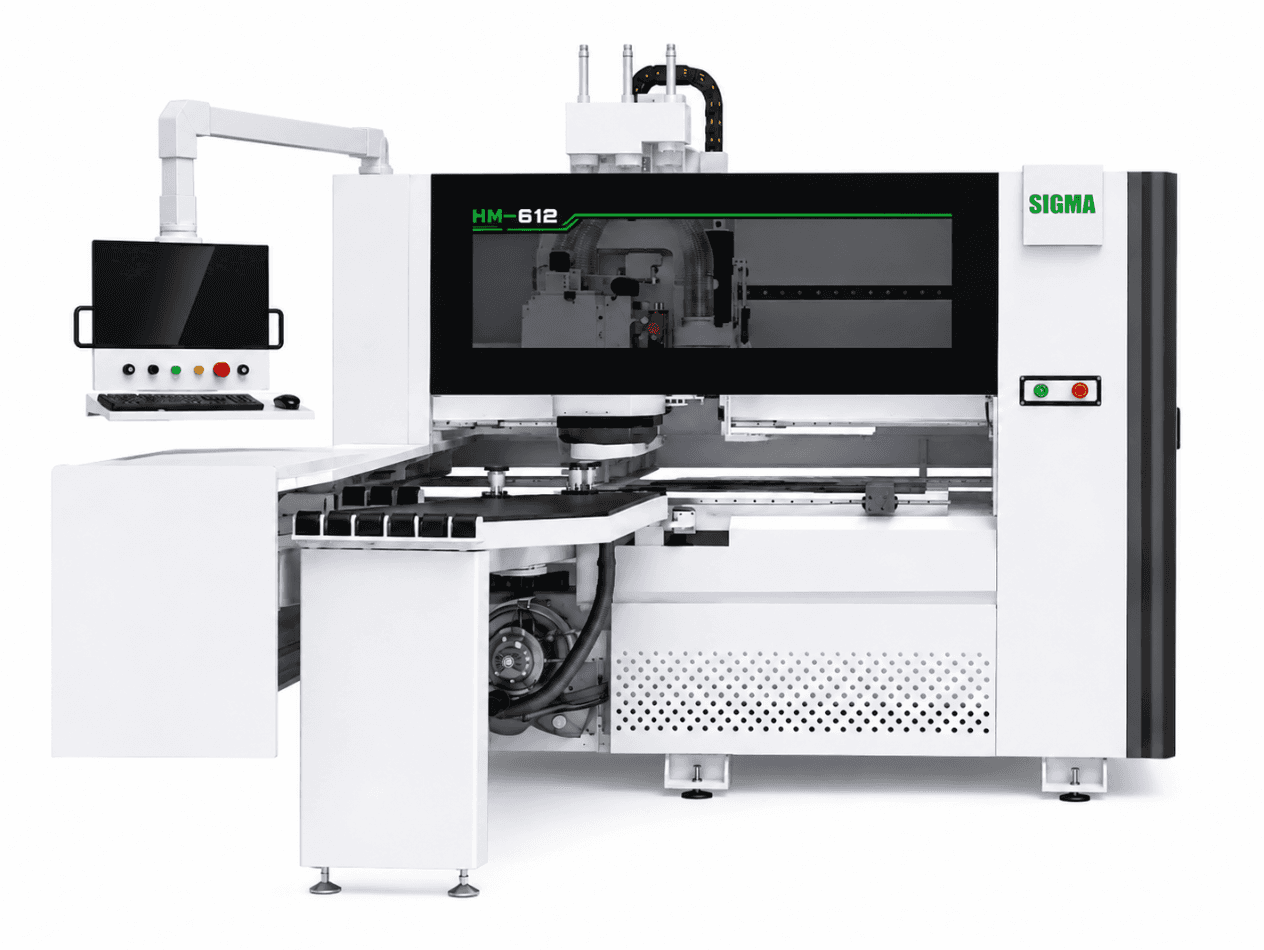

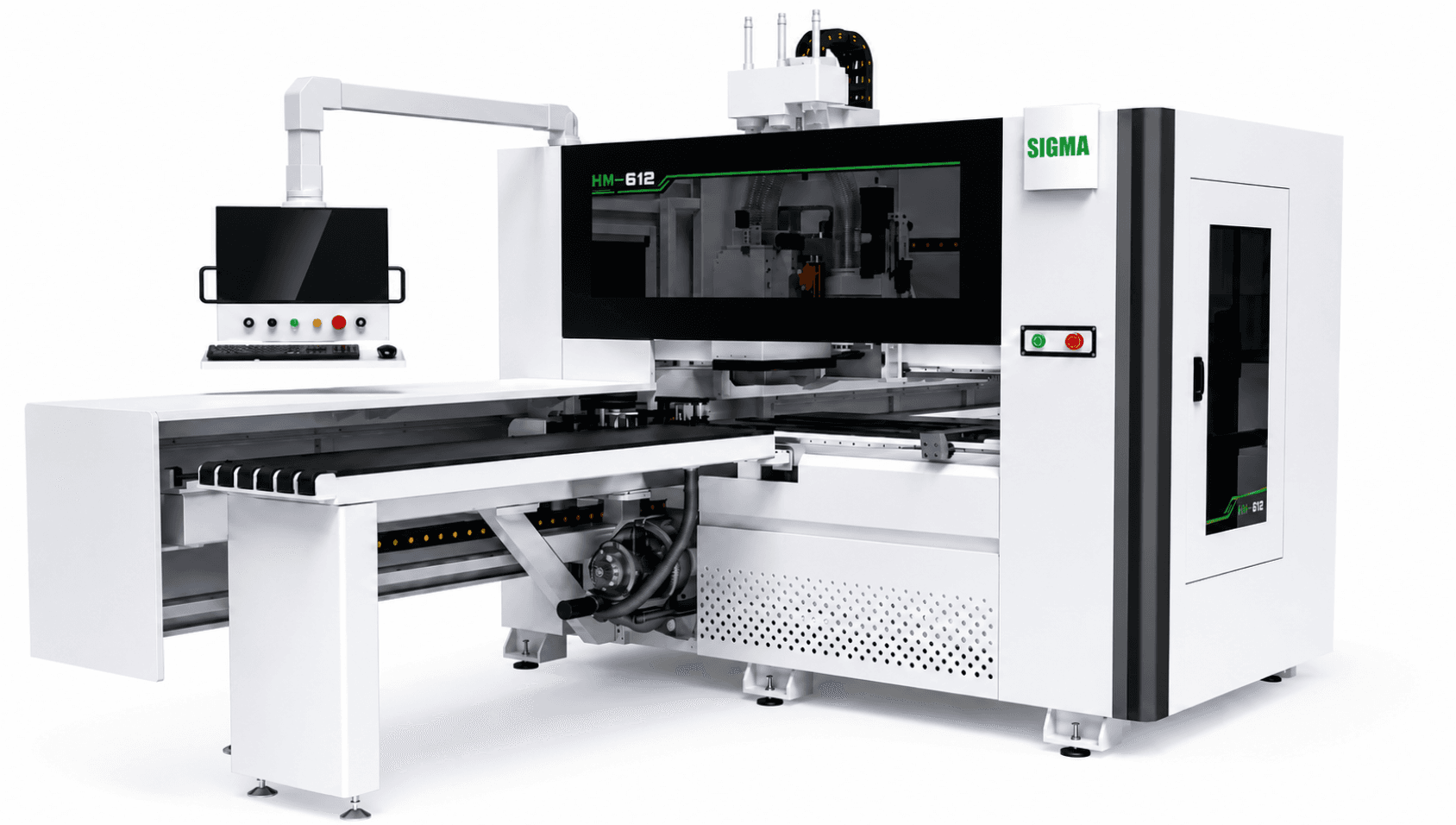

Sigma HM-612 (CNC 6-Side Drilling Machine)
A CNC six-side drilling and slotting machine that processes all six sides of a panel in a single cycle, ideal for panel furniture, cabinets, doors, and custom furniture production. Fitted with two grippers, vertical and horizontal drilling heads, and a 21-inch touchscreen with QR code scanning, one operator can process over 1,000 boards per day.
Request a QuoteTechnical Specifications
- Dimensions
- 5910 × 2630 × 2500 mm
- Weight (approx.)
- 4000 kg
- Total Power
- 21 kW
- Voltage
- 380V, 50/60Hz, 3-phase
- Working Accuracy
- ± 0.1 mm
- Board Width
- 35 – 1250 mm
- Board Length
- 220 – 3200 mm
- Main Spindle Speed
- 0 – 18000 rpm
- Main Spindle Power
- 3.5 kW (up) / 3.5 kW (down)
- Number of Grippers
- 2 pcs
- Vertical Drills
- 18 pcs (9 up / 9 down)
- Horizontal Drills
- 8 pcs (X: 2×2, Y: 2×2)
- Gripper Max Speed
- 120 m/min
Advanced Features
- ✓21-inch touchscreen
- ✓QR code scanner
- ✓Air float working table
- ✓Siemens electric contactors
