Sigma 3 MZ3

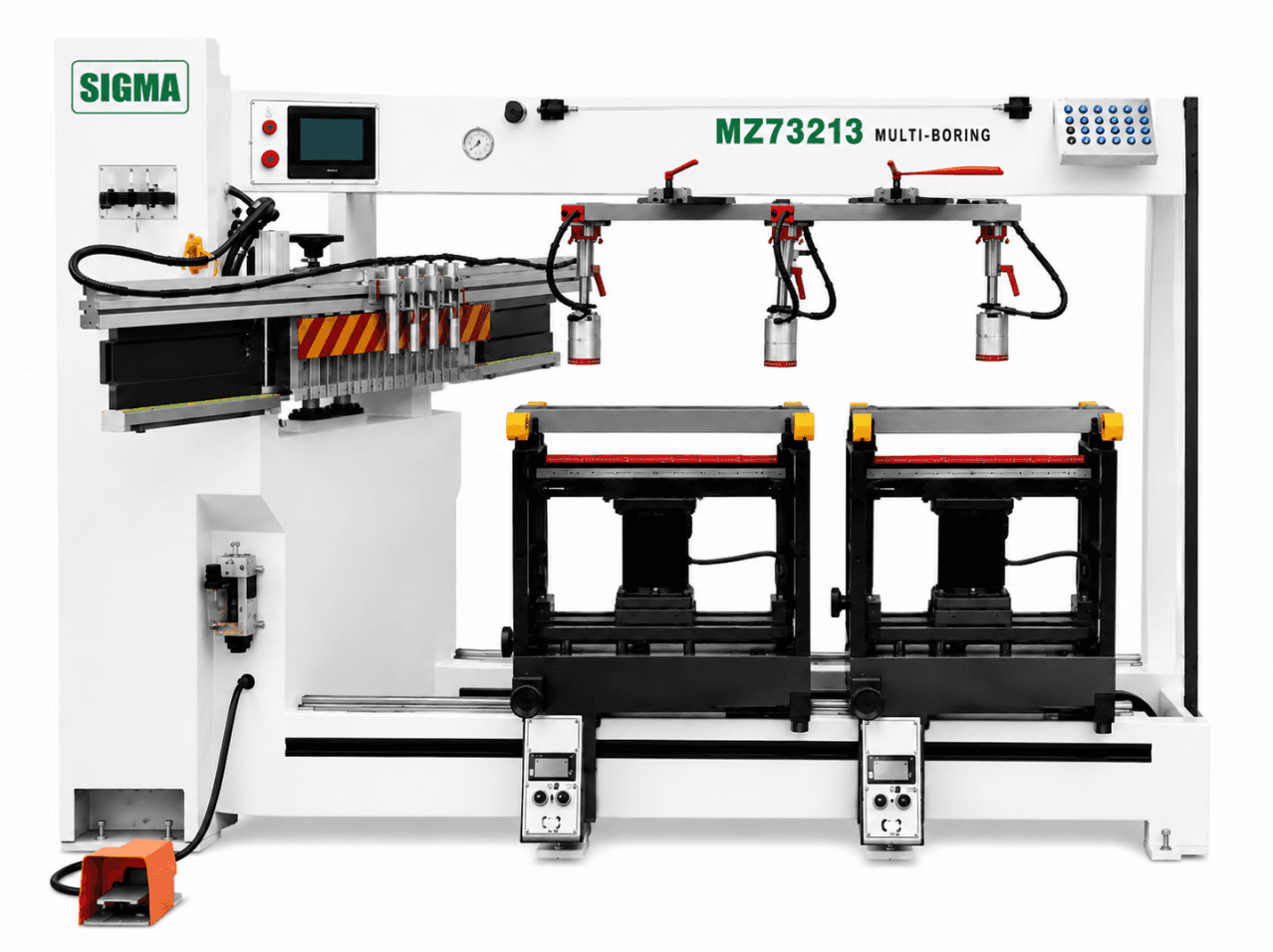

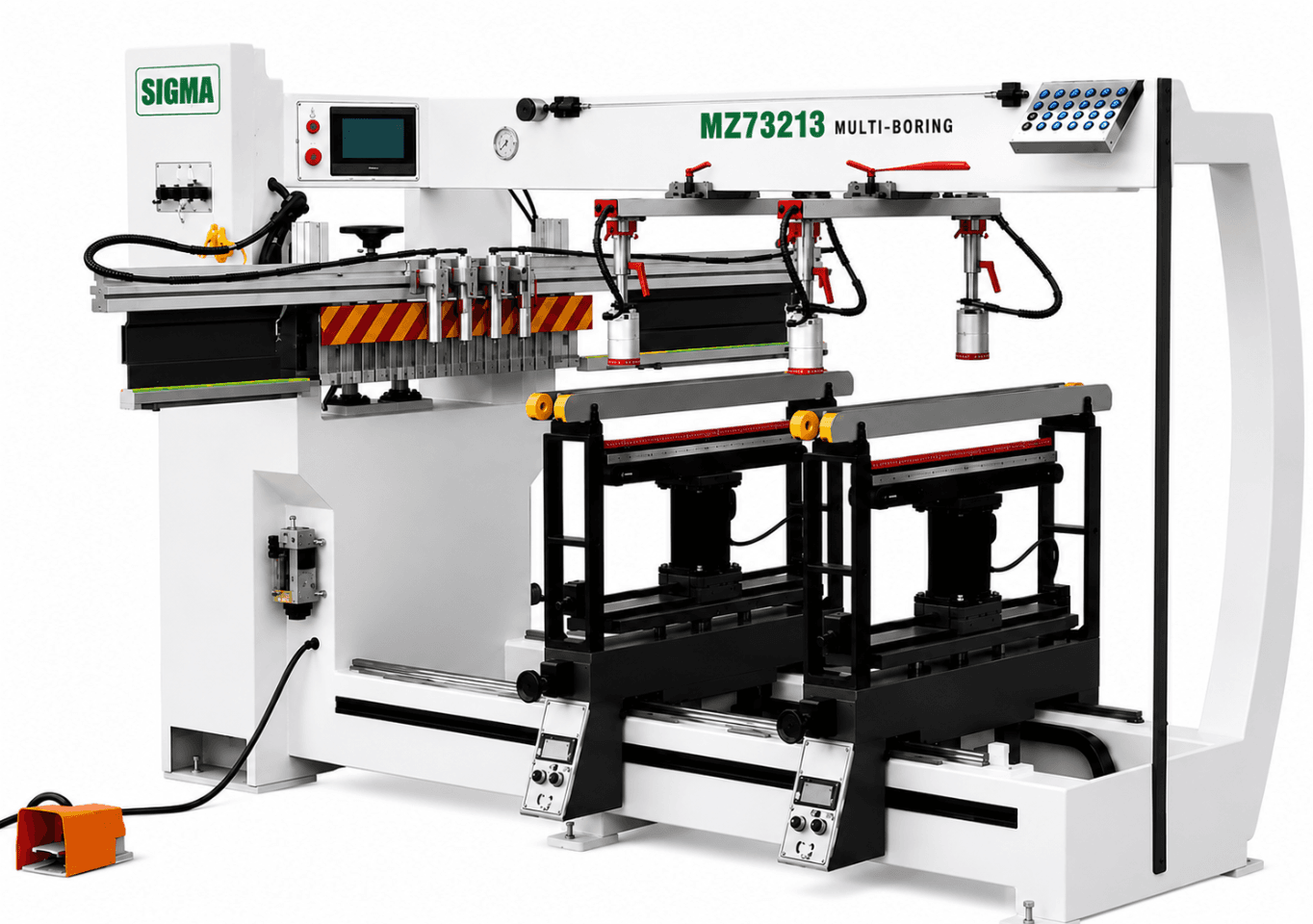

Sigma 3 MZ3 (3-Head Drilling Machine)
A 3-head drilling machine with 21 spindles per head, built for high-volume dowel and hardware hole drilling. Controlled via a Delta touchscreen with a digital counter per head and a Schneider-based control system.
Request a QuoteTechnical Specifications
- Dimensions
- 2400 × 1080 × 1400 mm
- Number of Heads
- 3
- Vertical Heads
- 2
- Power per Head
- 2.2 × 3 kW
- Spindles per Head
- 21 pcs
- Max Drilling Diameter
- 35 mm
- Max Drilling Depth
- 60 mm
- Vertical Holes Distance
- 140 – 1700 mm
- Control System
- Schneider + Delta HMI
Advanced Features
- ✓Delta HMI touchscreen control
- ✓Digital counter per head
- ✓Schneider control system
