Sigma 3 Z7A

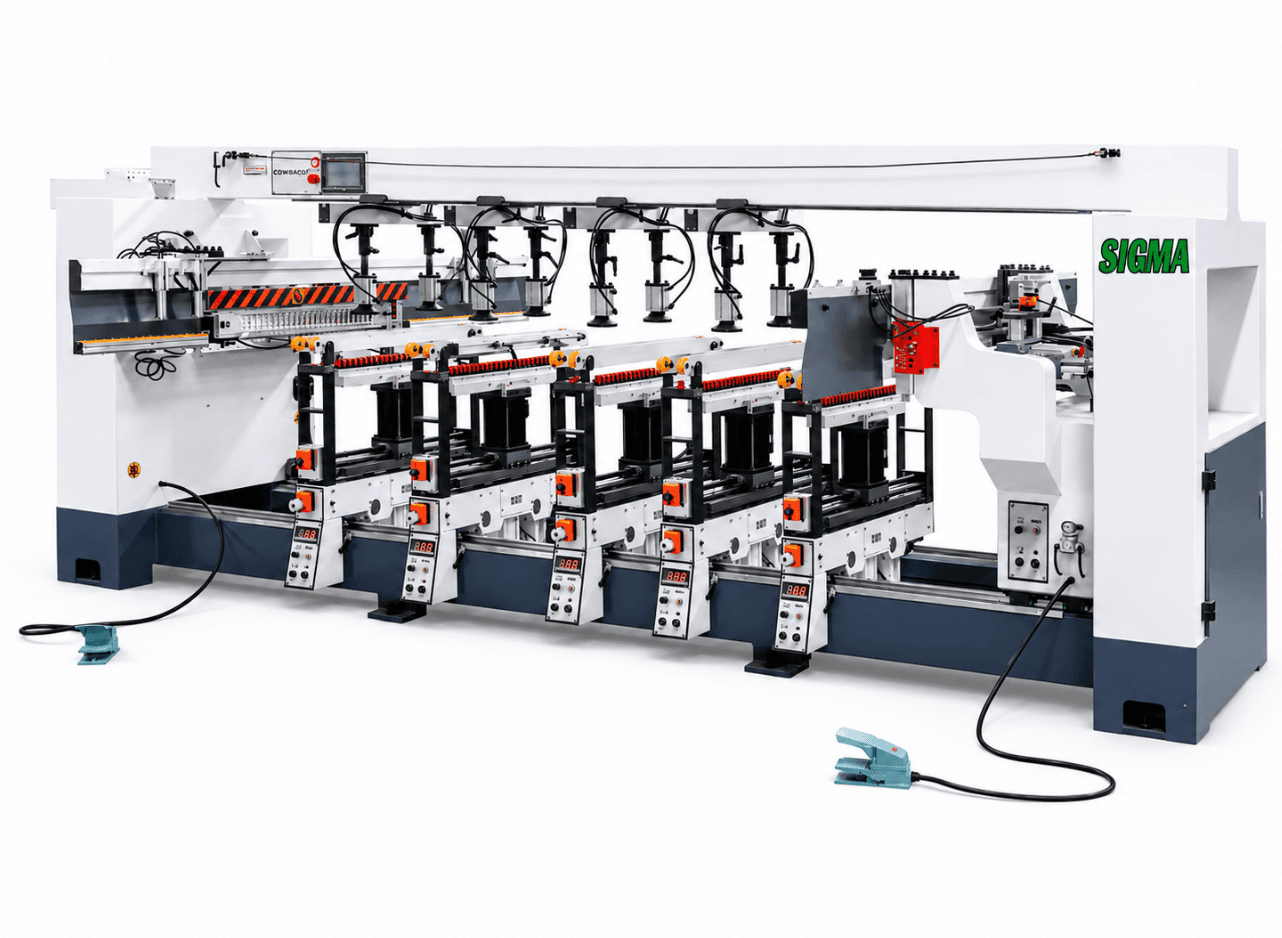

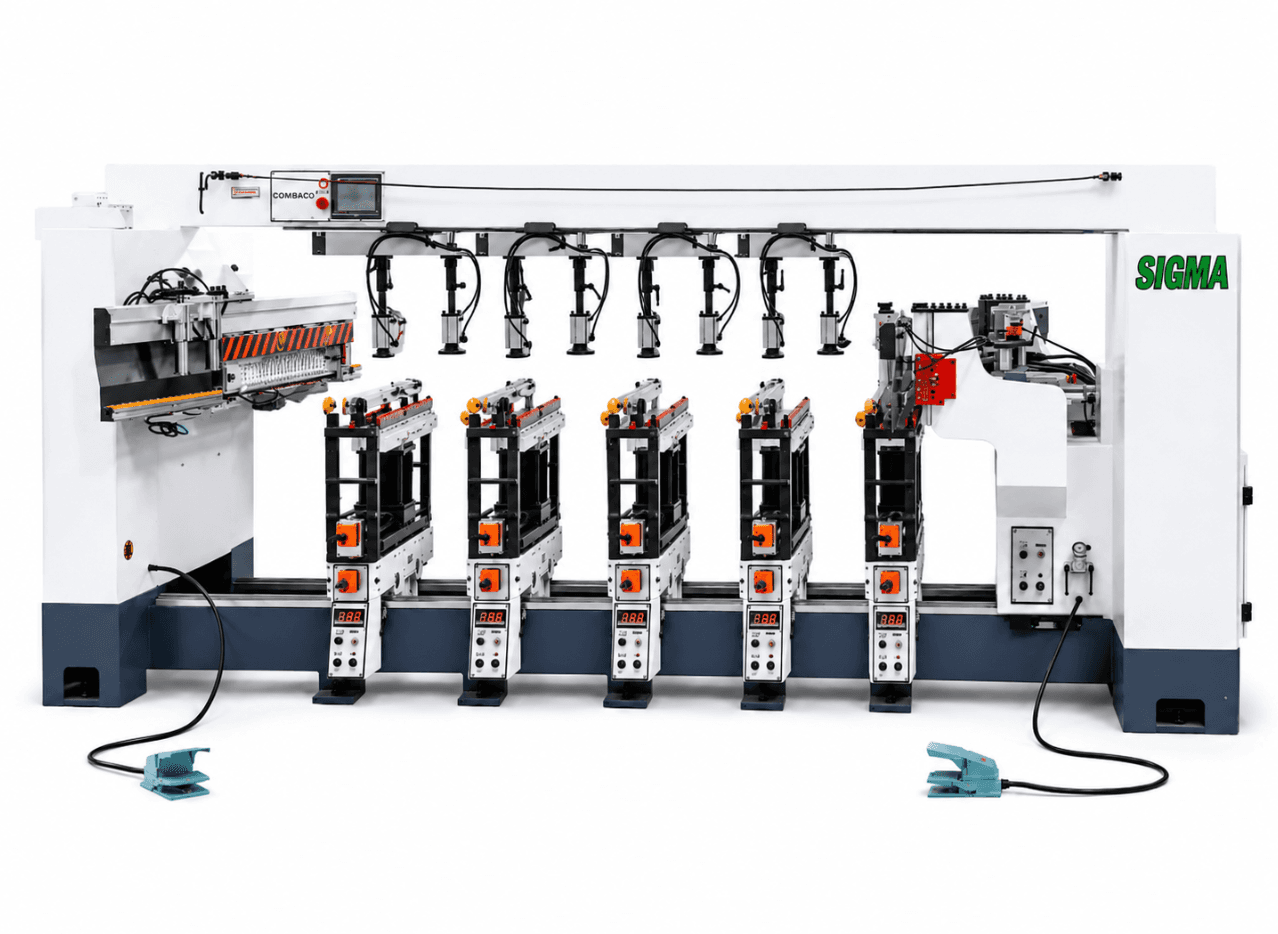

Sigma 3 Z7A (7-Head Drilling Machine)
A 7-head drilling machine (5 vertical, 2 horizontal) with 21 spindles per head, built for high-volume dowel and hardware hole drilling on multiple faces in a single setup. Controlled via a Delta touchscreen with a digital counter per head and a Schneider-based control system.
Request a QuoteTechnical Specifications
- Dimensions
- 4350 × 2500 × 1560 mm
- Weight (approx.)
- 1900 kg
- Number of Heads
- 7
- Vertical Heads
- 5
- Horizontal Heads
- 2
- Power per Head
- 2.2 × 3 kW
- Spindles per Head
- 21 pcs
- Max Drilling Diameter
- 35 mm
- Max Drilling Thickness
- 60 mm
- Control System
- Schneider + Delta HMI
Advanced Features
- ✓Delta HMI touchscreen control
- ✓Digital counter per head
- ✓Schneider control system
