Sigma 1 HA-05M

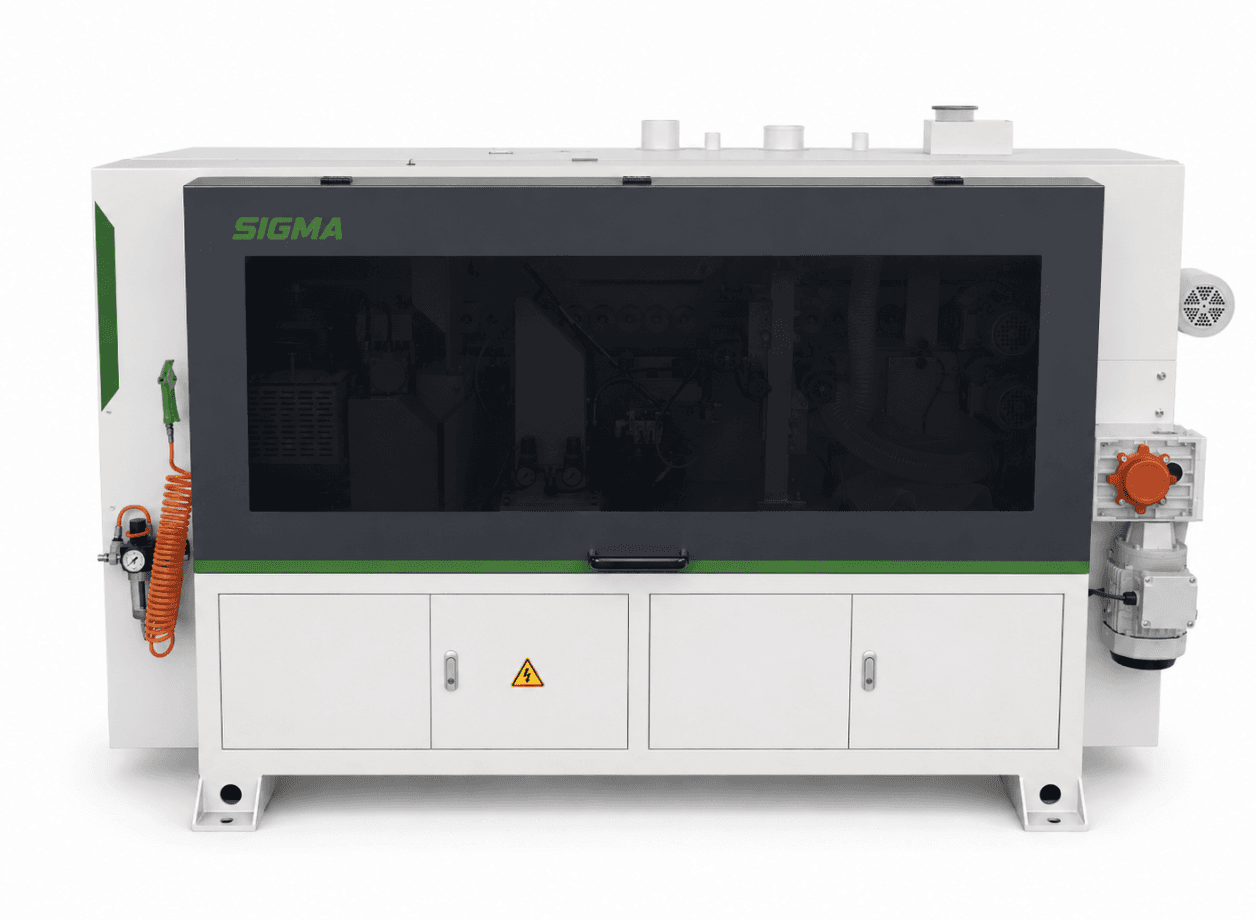

Sigma 1 HA-05M (Edge Banding Machine)
A compact edge banding machine covering end cutting, trimming, glue scraping, and brushing. A streamlined, lower-cost entry point into automatic edge banding for smaller shops.
Request a QuoteTechnical Specifications
- Dimensions
- 3220 × 1465 × 1300 mm (L×W×H)
- Weight (approx.)
- 750 kg
- Total Power
- 5.28 kW
- Air Pressure
- 0.6 MPa
- Panel Thickness
- 12 – 55 mm
- Glue Pot Capacity
- 1.5 – 2 L
- Edge Strip Thickness
- 0.4 – 3 mm
- Feed Speed
- 13 m/min

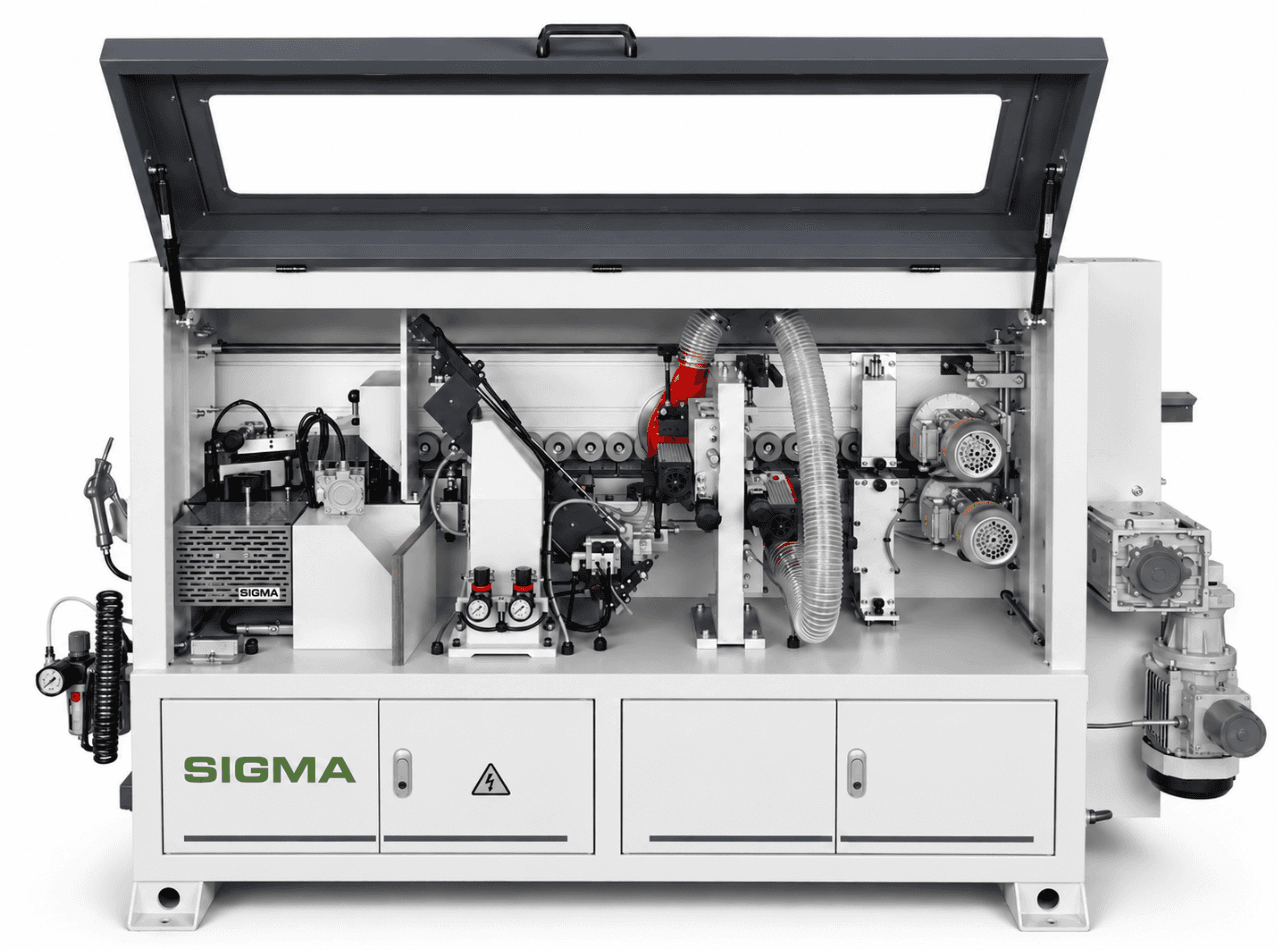

Processing Stages
- 1End cutting unit
- 2Line & tillable trimming unit
- 3Edge & glue scraping unit
- 4Brushing unit
Advanced Features
- ✓PLC & Delta touchscreen
- ✓Manual up and down movement
- ✓Meter counter
- ✓Schneider control system
