Sigma 1 HA-07M

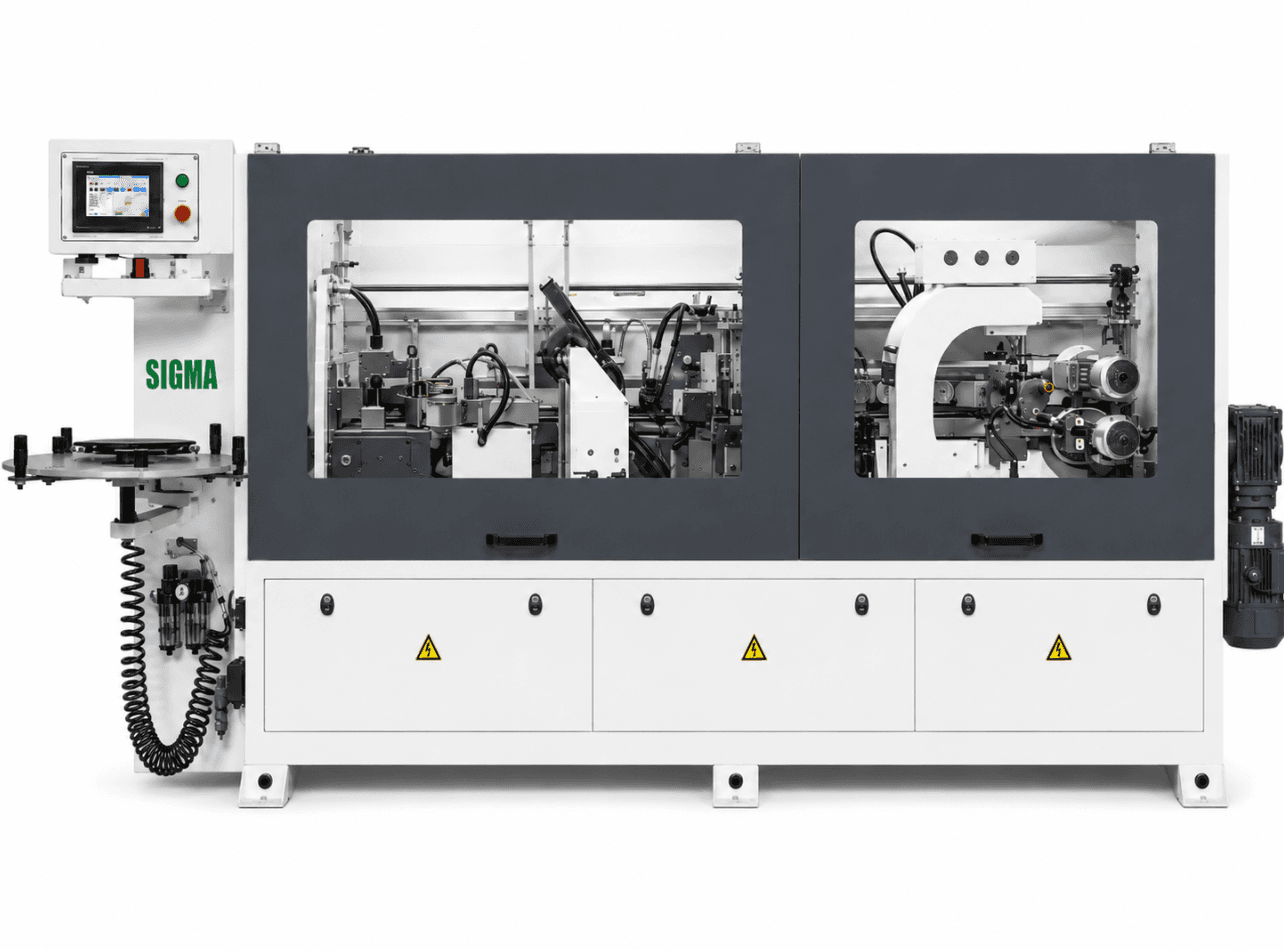

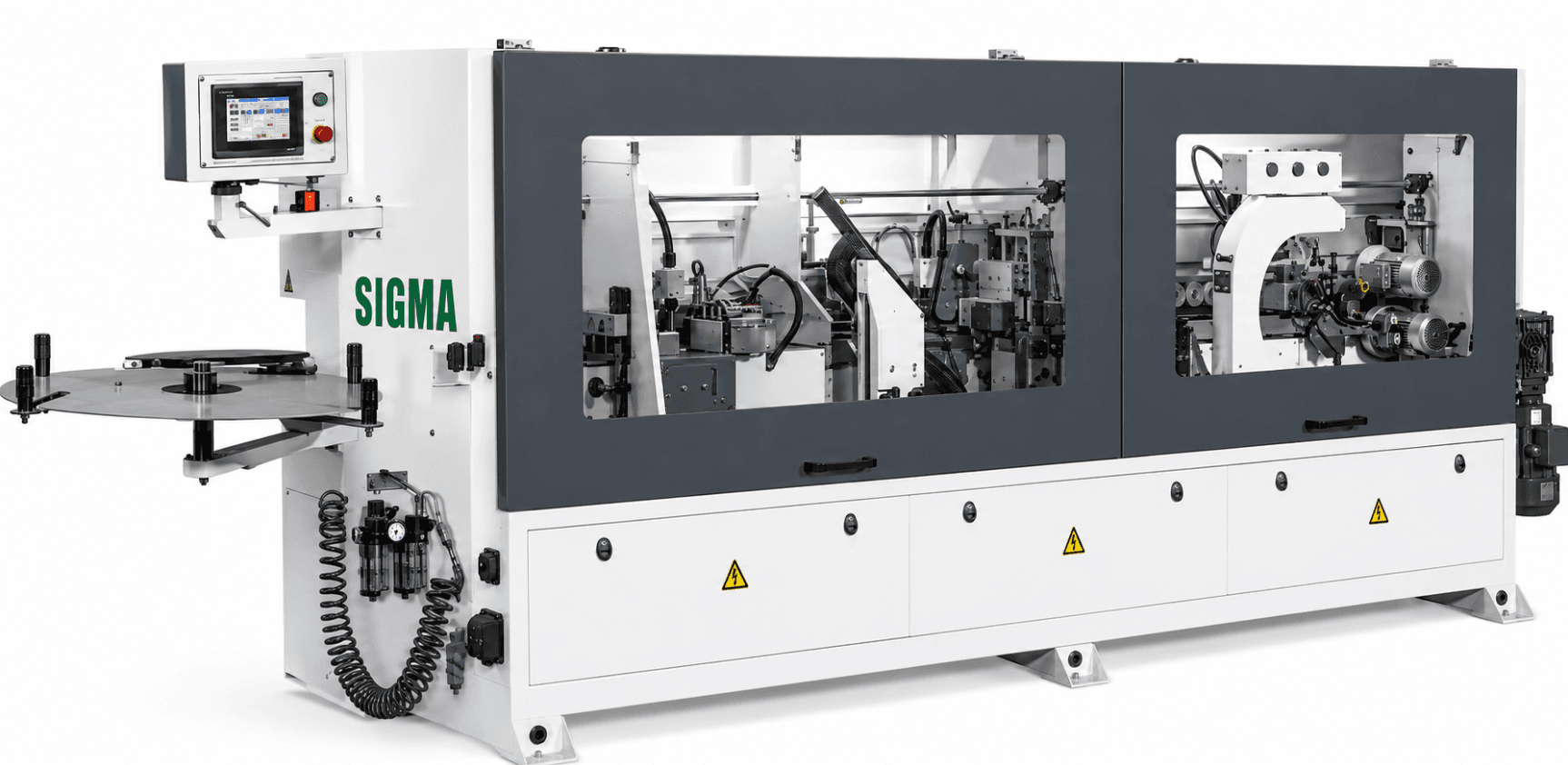

Sigma 1 HA-07M (7-Stage Edge Banding Machine)
A 7-stage automatic edge banding machine built for high-volume panel processing. It combines trimming, end-cutting, corner rounding, glue scraping, and brushing in a single pass, with a Schneider-based control system and a Delta touchscreen for precise, repeatable results.
Request a QuoteTechnical Specifications
- Dimensions
- 4770 × 1497 × 1743 mm (L×W×H)
- Weight (approx.)
- 1200 kg
- Total Power
- 8.66 kW
- Air Pressure
- 0.6 MPa
- Panel Thickness
- 10 – 50 mm
- Glue Pot Capacity
- 1.5 – 2 L
- Edge Strip Thickness
- 0.4 – 3 mm max
- Feed Speed
- 13 m/min
Processing Stages
- 1Panel edge trimming unit
- 2End cutting unit
- 3Line & tillable trimming unit
- 4Rounding unit
- 5Edge & glue scraping unit
- 6Brushing unit
Advanced Features
- ✓PLC & Delta touchscreen
- ✓Manual up and down movement
- ✓Meter counter
- ✓Cleaning liquid at the beginning
- ✓Schneider control system
