Sigma 3 E-07L

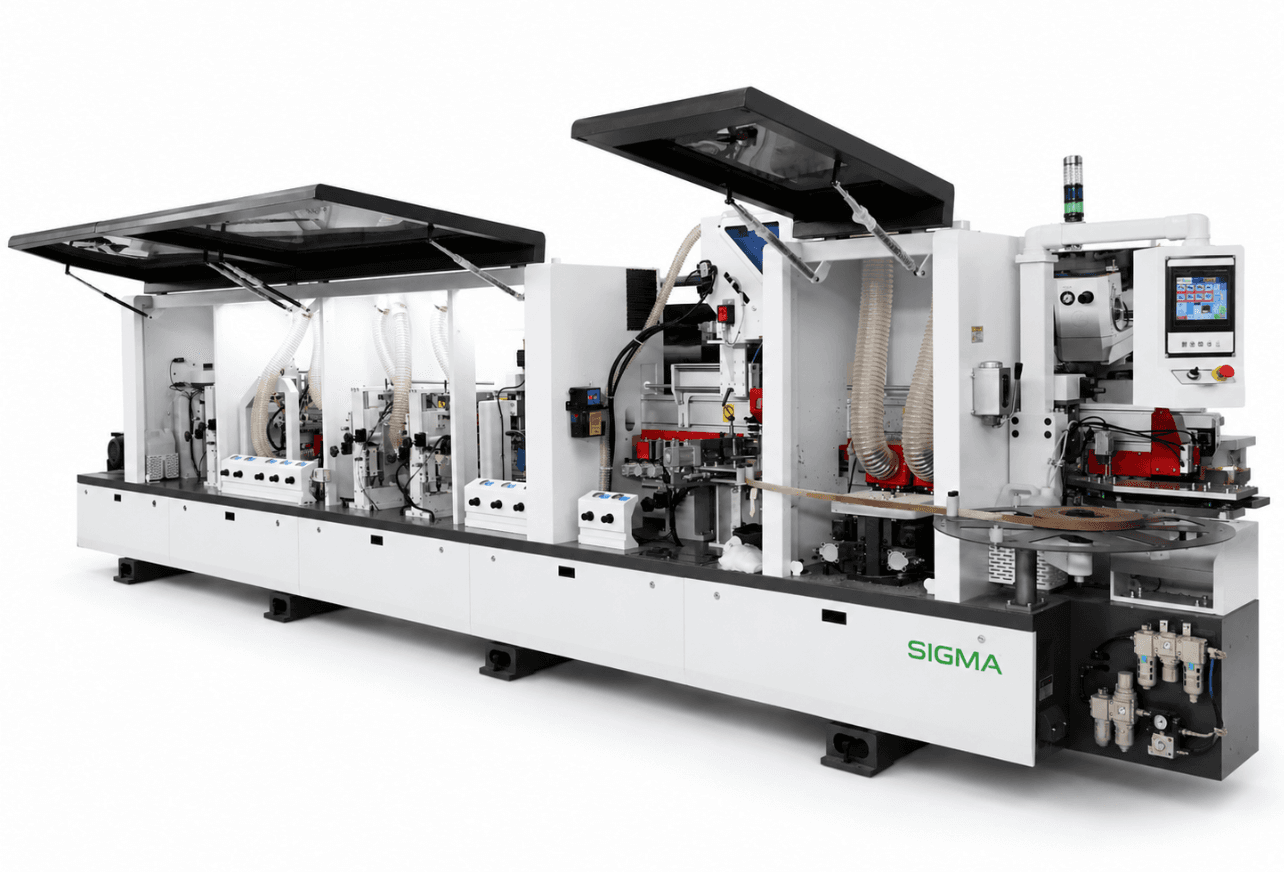

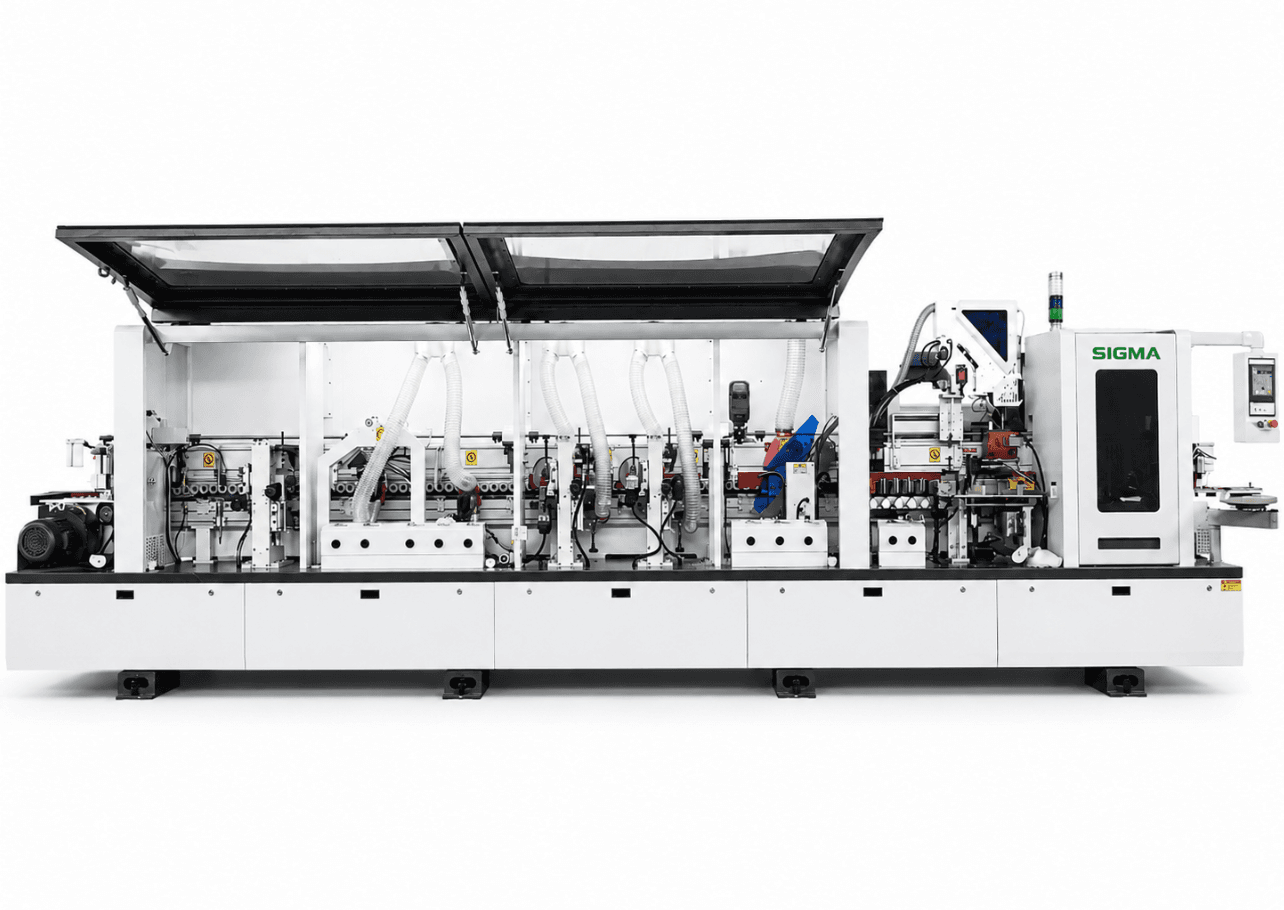

Sigma 3 E-07L (Edge Banding Machine)
The largest machine in the Sigma edge banding line, with dual scraping units, buffing brushes, a compensating glue unit, automatic lubrication, and Schneider-based controls. Built for large panels and demanding, continuous production.
Request a QuoteTechnical Specifications
- Dimensions
- 7200 × 880 × 1800 mm (L×H×W)
- Weight (approx.)
- 2500 kg
- Total Power
- 21.75 kW
- Air Pressure
- 0.6 MPa
- Panel Thickness
- 10 – 60 mm
- Edge Strip Thickness
- 0.4 – 3 mm max
- Feed Speed
- 15 – 23 m/min
- Min. Workpiece Width
- 4.5 × 4.5 cm
Processing Stages
- 1Panel edge trimming unit
- 2End cutting unit
- 3Line trimming unit (two independent motors)
- 4Tillable trimming unit (two independent motors)
- 5Rounding unit
- 6Edge & glue scraping unit 1
- 7Edge & glue scraping unit 2
- 8Buffing brushes
Advanced Features
- ✓Compensating glue unit
- ✓Glue tank
- ✓Auto lubrication
- ✓Automatic up and down movement
- ✓Piece & meter counter
- ✓PLC & Delta touchscreen
- ✓Cleaning liquid at beginning and end
- ✓Schneider control system
