Sigma KN-700-3

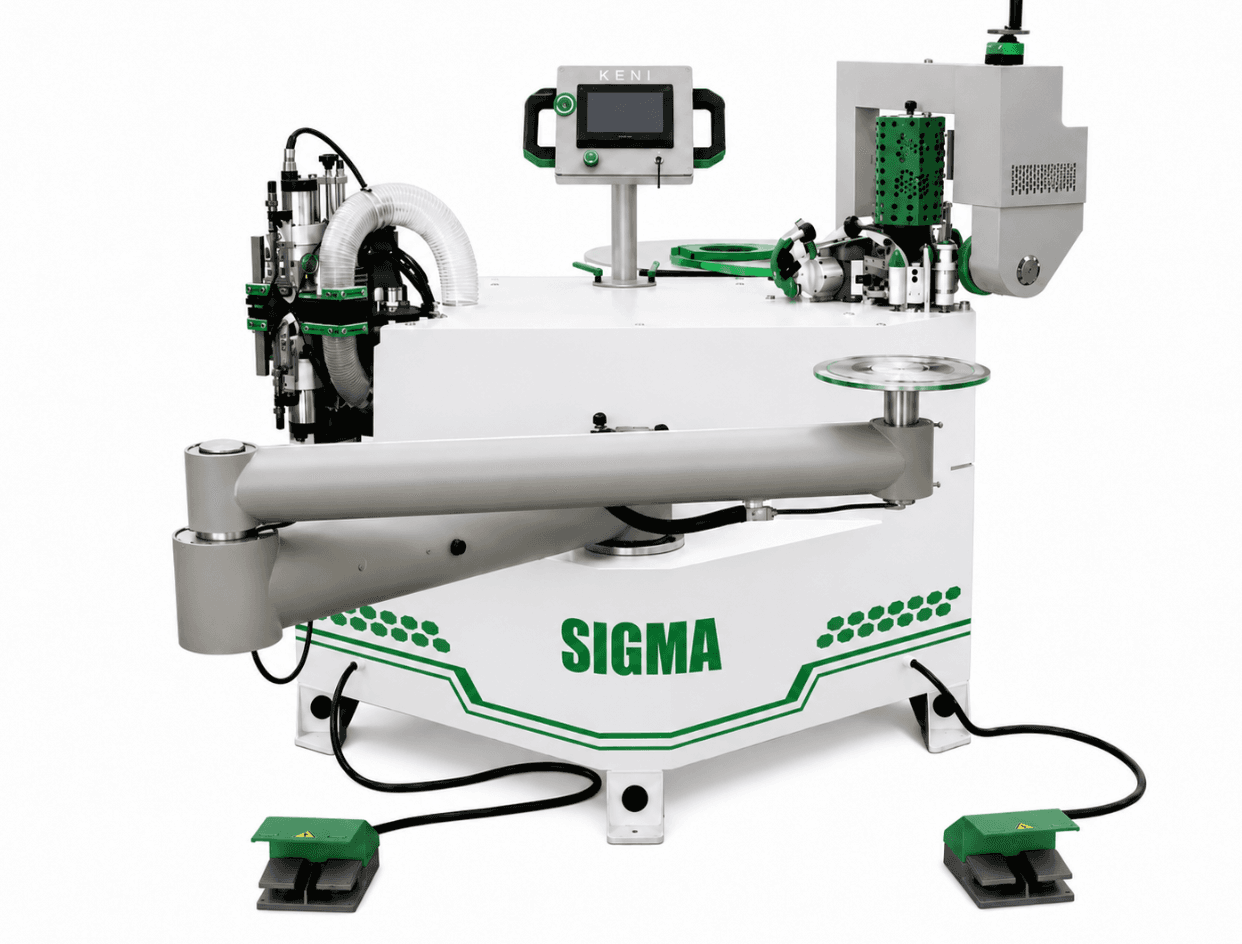

Sigma Edge Curve Machine KN-700-3
An edge-curving/banding machine for curved and profiled panels, handling PVC, wood veneer, melamine, and plastic strip on MDF, HDF, particle board, multilayer, and Malacca board. Features touchscreen control and adjustable banding/trimming speeds.
Request a QuoteTechnical Specifications
- Dimensions
- 2040 × 1500 × 1660 mm
- Weight (approx.)
- ~530 kg
- Total Power
- 6.5 kW / 8.7 hp
- Air Pressure
- 6 – 8 MPa
- Voltage
- 380V, 3ph, 50Hz
- Glue Pot Capacity
- 2.6 L
- Glue Type
- EVA / PUR
- Glue Pot Temperature
- 110°C – 210°C
- Banding Speed
- 0 – 37 mm/s
- Trimming Speed
- 0 – 24 mm/s
- Strip Width
- 14 – 70 mm
- Strip Thickness
- 0.5 – 3 mm
- Strip Material
- PVC / wood veneer / melamine / plastic
- Board Types
- MDF / HDF / particle board / multilayer / Malacca
- Control
- Touchscreen
